Miray trigger pump and dispenser capping machine-vibrator feeding caps

Short Description:

This machine is used to tighten miray trigger pump or dispenser or press pump head tightenly on container mouth. It can finish feeding caps, Straightening and inserting pipes, and screw capping caps on container mouth automatically.

Send email to us

Product Detail

Video

Customers' Feedback

Transaction History

Certificate

Product Tags

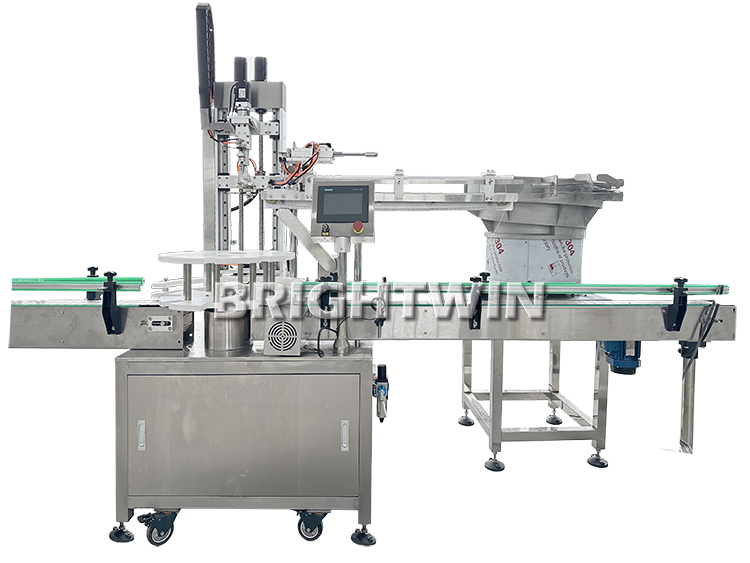

Miray trigger pump and dispenser capping machine

Overview of Miray trigger pump and dispenser capping machine

The machine adopts star-wheel to hold and location bottles, caps feeding and bottles feeding work at the same time, once enough caps are fed by the vibrator, the capping head will grab the first one cap at the caps line and horizontal move to lifting position. There is straightening claw is open waiting for the cap, it will gather to hold the pipe and move down to straighten the cap's pipe, then capping head and the straightening claw will lift down together to insert the pipe into the bottle mouth which bottle is under the capping head right now. Once the claw is near to the bottle mouth, it will open, and capping head will start to rotate and tighten the cap tightenly on bottle mouth.

All the parameters can be setted on Touch screen, like lift speed, rotate speed, capping torque, delay time, lift distance, etc.

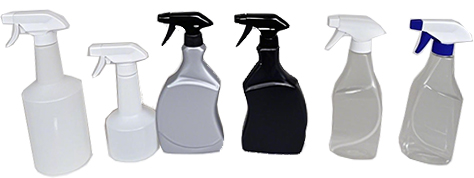

This machine is suitable for the following bottles and caps:

Caps feeding of Miray trigger pump and dispenser capping machine

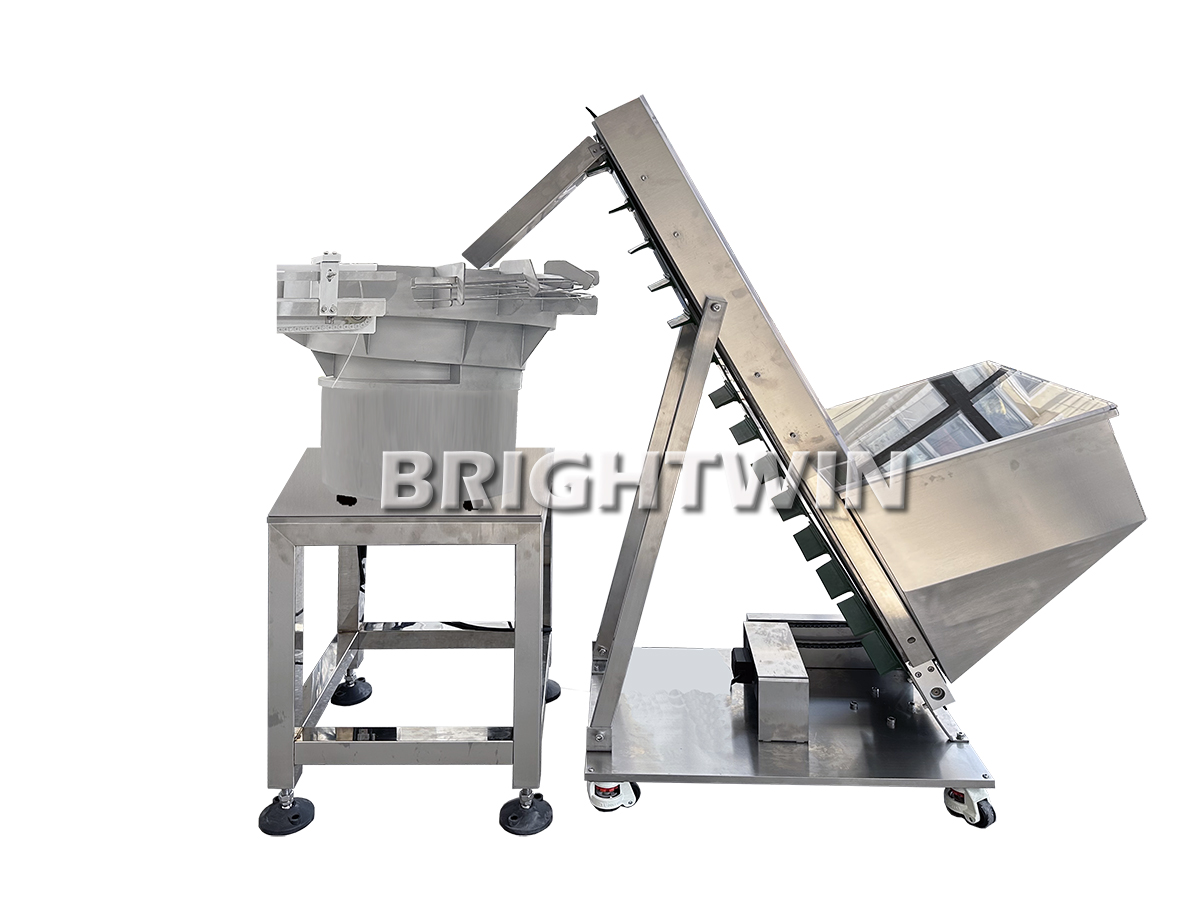

Cause the caps have long pipes, so the vibrator cannot stock many caps in the hopper, we suggest customer to use a caps elevator to provide caps to vibrator periodically.

Introductions of Miray trigger pump and dispenser capping machine

● Servo motor control the torque to avoid caps' damage.

● Servo motor control the lifting and horizontal moving, stable and fast.

● This machine is for the caps 10mm-100mm regardless the shapes as long as screw caps. (Can be customized)

● This machine can be used for special shape caps, like: spray head, "duck mouth" shape head, and miray trigger pump, etc. (Can be customized)

● This machine can be used some special situation, like: bottle's handle higher than bottle mouth, caps are difficult to be placed on bottle mouth, etc.

● This machine has the original design, easy to operate and adjust.

● The speed can reach 17bpm, freely used separately or combined into production line.

Parameter of Miray trigger pump and dispenser capping machine

Caps diameters	10-100mm(customized)
Bottle diameters	10-150mm(customized)
Driver	Servo motor
Screw speed	0-1000r/min
Capacity	0-17bpm
Voltage	220V, single phase(customized)
Screw torque	Adjustable

Additional device of Miray trigger pump and dispenser capping machine

Glass cover

Whether the glass cover needs to be added, up to you.

After sales service

1. Offer professional operation manual
2. Online support
3. Video technical support
4. Free spare parts during warranty period
5. Field installation, commissioning and training
6. Field maintenance and repair service
