Factory Outlets Honey Filler - Automatic bottle filling capping labeling machine – Brightwin Detail:

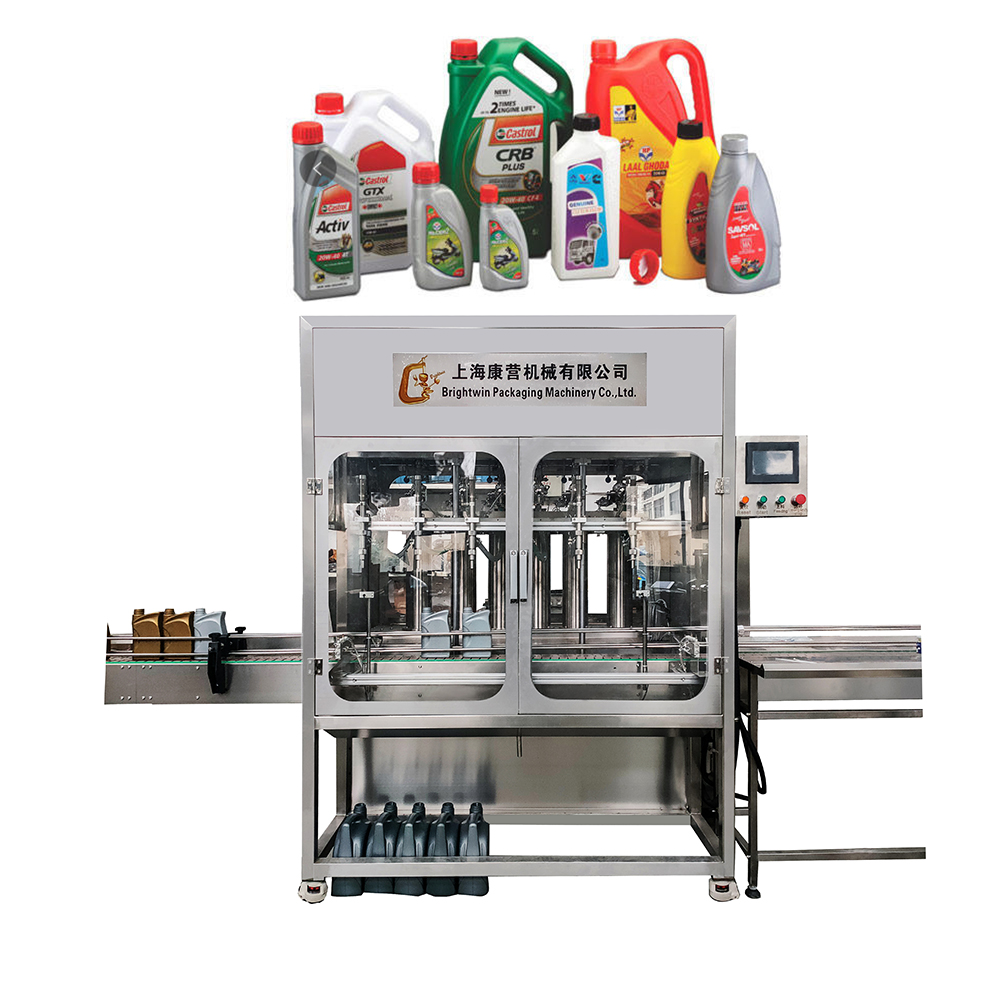

automatic liquid bottle filling capping labeing machine

This machine is used to fill various liquid or viscous liquid products, like cooking oil, lube oil, beverage, juice, sauce, paste, cream, honey, and chemicals etc as long as its liquid. It adopts piston pump filling with servo motor driven which is more accurate and easy to adjust the volume. With rotary valve or non-rotary valve according to different products.

Parameter

program

filling machine

Filling head

2, 4, 6, 8, 10, 12, 16 etc(optional according to speed)

Filling volume

1-5000ml etc(customized)

Filling speed

200-6000bph

Filling precision

≤±1%

Power supply

110V/220V/380V/450V etc(customized) 50/60HZ

Power supply

≤1.5kw

Air pressure

0.6-0.8MPa

Net weight

450kg

Elements brand

Item

Brands and material

sensor

Omron

PLC

SIEMENS

Touch screen

SIEMENS

Servo motor

Mitsubishi

Piston cylinder

5MM thick SUS316L

Rotary valve

SUS316L

Rotary valve connection

quick coupler designed from Germany

Filling nozzles

SUS316L stainless steel anti-drip quick-coupler design

Cylinder

Airtac Taiwan

Connecting pipe

fast loading pipe from Italy

Sealing ring

food grade material from Germany

electrical parts

Schneider

Rack

SUS304

bearings

Japan NSK, original imported

Level control in hopper

with

Details of filling machine

1. The material of sealing ring is imported from Germany. It is composed of stainless steel spring and UPE (ultra high molecular weight polyethylene).2. sealing ring

2. Equipped with SUS316L long sepcial designed no–drip filing nozzles, which can protect the cylinder on the top being damaged by material. As following pictures:

filling machine02

3. 304 frame, 5mm thick SUS316L honing piston pump, manufactured by Taiwan producer

3. SUS 316L Piston pump(1)

4. With detector in each SUS316L valve and filling nozzle, if there is any problem in any nozzle, it shows in touch screen, its easy to be found.filling machine (2)

5. With automatic cleaning systemfilling machine03

Product detail pictures:

Factory Outlets Honey Filler - Automatic bottle filling capping labeling machine – Brightwin detail pictures

Factory Outlets Honey Filler - Automatic bottle filling capping labeling machine – Brightwin detail pictures

Factory Outlets Honey Filler - Automatic bottle filling capping labeling machine – Brightwin detail pictures

Factory Outlets Honey Filler - Automatic bottle filling capping labeling machine – Brightwin detail pictures
